David Stanton Rail Clips

Clips to secure a Makita (and probably Festool) guide rail to 20mm bench dogs as on an MFT.

Here’s the .stl file.

Track Clip R.stlDownload

Makita Palm Router Plunge Base Extension

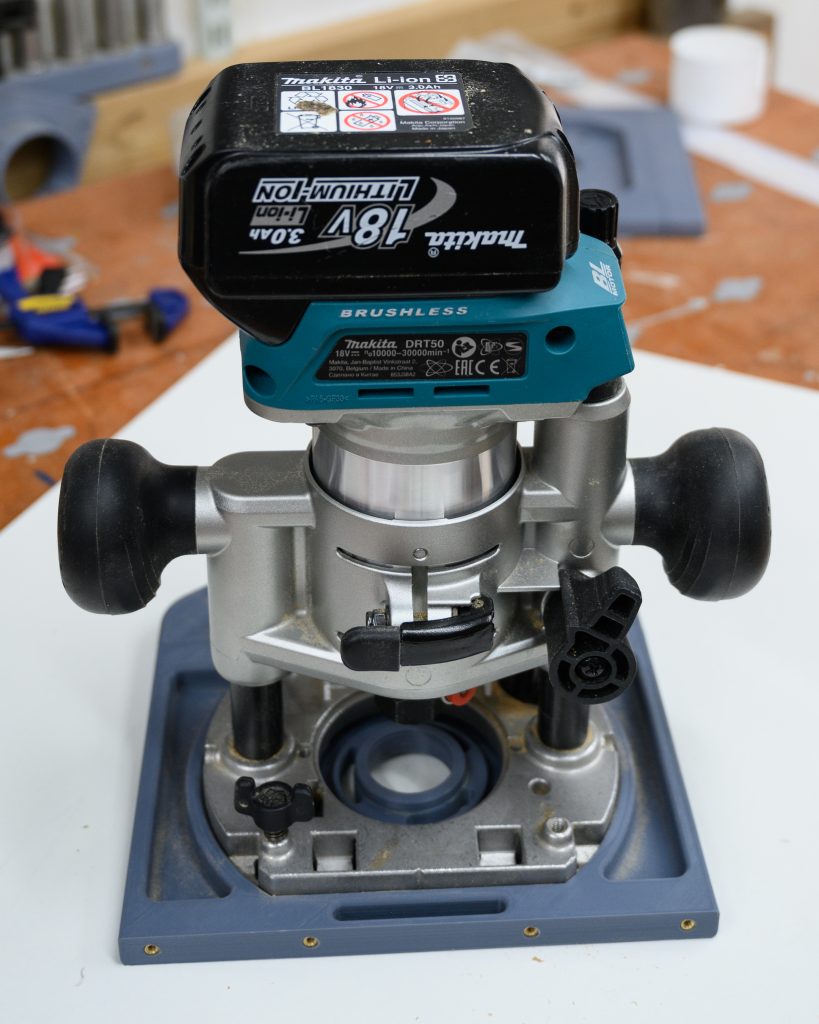

Router with the base extension. The router locates positively in a well in the extension, so is properly centred.
Showing the mounting screws, and the thread for the (Porter-Cable type) guide bush
Just the base

STL Files

The .zip archive contains 3 files:
base.stl – the main base
extension.stl – a side extension
body1.stl – the dust-extract extension

Makita-BaseDownload

Hitachi Base

Base for the Hitachi M12V2 router. The guide bush mount is printed separately and bolted to the base.

STL Files

The .zip archive contains 2 files:
base.stl – the main base
Guide bush mount.stl – the threaded guide bush mount.

Hitachi-Router-BaseDownload

Router Track Adapter

An adapter to allow Makita or Hitachi routers to be used with the Makita guide rail.
The router locates to the adapter either by means of a 30mm guide bush, or by bolting the router base directly on to the adapter

STL Files

The .zip archive contains 2 files:
Router Mount.stl – the mount plate
Track Slide.stl – the track connector

Track-Guide-AdapterDownload

Domino Plate

No pics for this one. It relates to a video on Peter Millard’s 10 Minute Workshop forum.

Here’s the .stl:

STL Files

DominoPlate 18mm.stlDownload
